TECHNICAL DATA

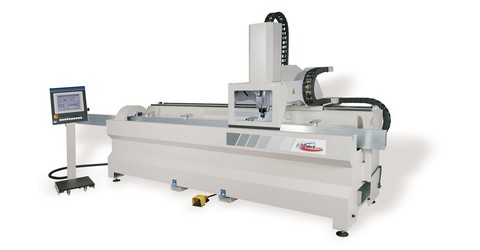

USEFUL STROKE X= 4000mm Y= 360 mm Floor-type vertical spindle machining centre with bridge type gantry assembly with 3 axis controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron. The machine is fitted with an electric-spindle (7,5kw., 20.000 rpm) with shank according with ISO 30 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 5 tools to drill, to mill and to thread plus 1 to mill with a side milling cutter. Equipped with 4x standard vices. Kit purifications by micro drop with pure oil. Light curtain system.
STANDARD EQUIPMENT
T’S EQUIPPED WITH A CNC UNIT ABLE TO MANAGE: Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z) Programming system according to ISO codes Programming system according to a system of aided geometric Availability and tools parameters
OPTIONALS
Additional clamp (each) Additional Stop Perimetral protection 3x Tanks to collect swarfs Motorized belt conveyor Collect chuck ISO 30 Spring collect ER 32 Shell mill chuck ISO 30 TCT side milling cutter HM Ø 150x 6x22 Tap holder chuck Quick change tap adapter Bar code reading device Chuck ISO 30 with two horizontal spindles

TECHNICAL DATA

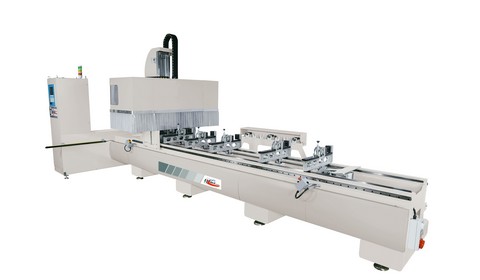

Floor-type vertical spindle machining center controlled by CNC. Pneumatic tilting working table: -90°/0°/+90°, intermediate angles obtained by mechanical stops. The machine is fitted with an electric-spindle 4Kw, 24000rpm, automatic quick change of the tool with 6 tools positions. Interpolation X / Y / Z axes managed by numerical control. Monitor 11,5” TFT colour display (Touch screen with simplify graphic running on Windows). Possibility to work pieces longer than the machine. Brushless Yaskawa motors for X / Y / Z axis positioning. Complete with 4 pneumatic double action clamps with manual movement. Micro-drop lubrication. Axis movement on linear guides. Left stop. Light curtain system.
STANDARD EQUIPMENT
Nr.6 ISO 30 Cone Pneumatic lubrication Left stop Air Filter Air gun
OPTIONALS
Bar code reading device Collect chuck ISO 30 Milling cutter Kit Ø120mm Right stop

TECHNICAL DATA

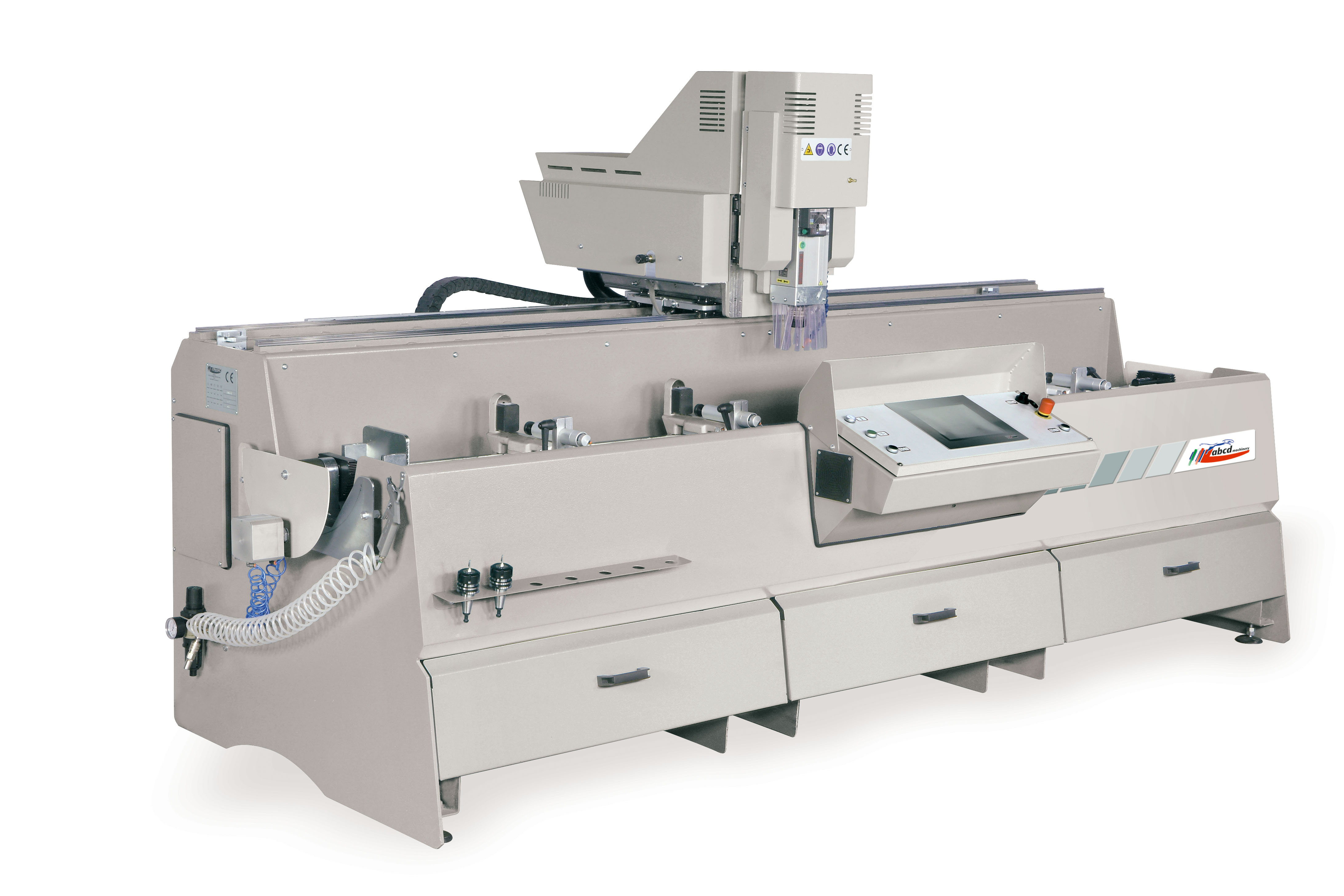

USEFUL STROKE X= 7400mm Y= 650mm Floor-type vertical spindle machining center with 3 axis controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron. The machine is fitted with an electric-spindle (7,5kw., 20.000 rpm) with shank according with ISO 30 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 6 tools to drill, to mill, to thread and to endmilling (milling cutter max Ø150mm). Equipped with 6x standard vices. Kit lubrification by micro drop with pure oil. Light curtain system. Milling dimensions: X=7400mm, Y=650mm, Z=300mm
STANDARD EQUIPMENT
IT’S EQUIPPED WITH A CNC UNIT ABLE TO MANAGE: Linear and circular interpolation on two axis (X-Y, X-Z, Y-Z) Programming system according to ISO codes Programming system according to a system of aided geometric Availability and tools parameters
OPTIONALS
Additional clamp (each) Additional Stop Perimetral protection Motorized vices 5x Tanks to collect swarfs Motorized belt conveyor Collect chuck ISO 30 Spring collect ER 32 Shell mill chuck ISO 30 TCT side milling cutter HM Ø 150x 6x22 Tap holder chuck Quick change tap adapter Bar code reading device Chuck ISO 30 with two horizontal spindles Double central stop

TECHNICAL DATA

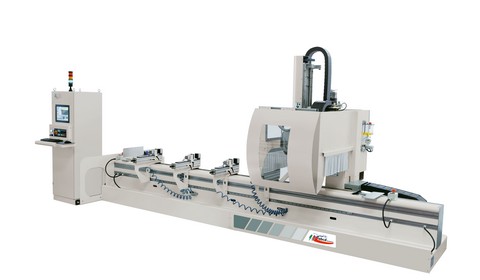

USEFUL STROKE X= 4000mm Y= 400mm Floor-type vertical spindle machining center with 3 axis controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron. The machine is fitted with an electric-spindle (7,5kw., 20.000 rpm) with shank according with ISO 30 rule, preset for an automatic tool change. The tool magazine, fixed on the mobile upright, can store till 5 tools to drill, to mill and to thread plus 1 also possible to used to mill with a side milling cutter. Equipped with 4x standard vices. Kit lubrification by micro drop with pure oil. Light curtain system.
STANDARD EQUIPMENT
IT’S EQUIPPED WITH A CNC UNIT ABLE TO MANAGE: Linear and circular interpolation on two axis (X-Y) Programming system according to ISO codes Programming system according to a system of aided geometric Availability and tools parameters
OPTIONALS
Additional clamp (each) Additional Stop Perimetral protection Collect chuck ISO 30 Spring collect ER 25 Shell mill chuck ISO 30 TCT side milling cutter HM Ø 150x 6x22 Tap holder chuck Quick change tap adapter Bar code reading device Chuck ISO 30 with two horizontal spindles Motorized vices

TECHNICAL DATA

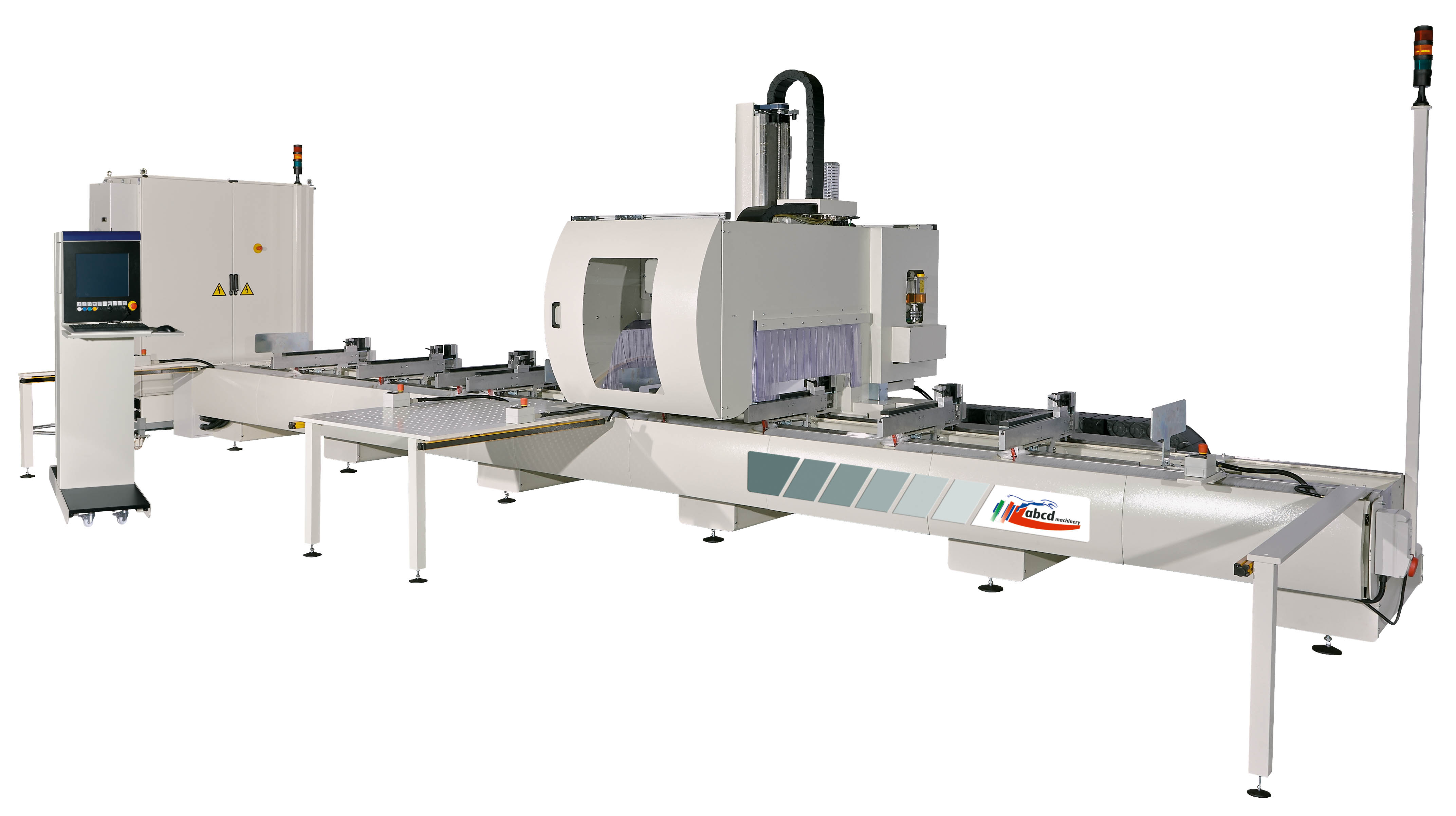

STROKE X= 2800mm Y= 200mm Z= 200mm Floor-type vertical spindle machining center controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron working on 3 sides. Pneumatic tilting working table: -90°/0°/+90°, intermediate angles obtained by mechanical stops. The machine is fitted with an electric-spindle 4Kw, 18000rpm managed by inverter and quick change of the tool with spindle ISO30. Interpolation X / Y / Z axes managed by numerical control. Monitor 10,4” TFT colour display (Touch screen with simplify graphic ranning on Windows). Possibility to work pieces longer than the machine. Brushless motors for X and Y axis positioning. Oilpneumatic lowering Axe Z. Bimanual safety system for the piece to be worked and for the rotation of the working table. Complete with 4 pneumatic double action clamps, tool diameter correction by software. Axis mouvements on linear guides. Left profile stop. Milling dimensions: X=2800mm, Y=150mm, Z=150mm. Light curtain system.
STANDARD EQUIPMENT
1x Spindle ISO 30 1x Tooling unit Ø8mm 1x Collet Ø8mm Pneumatic spray mist lubrication 3x compartments to collect swarfs Air Filter Air Gun with spiral hose
OPTIONALS
Micro-drop lubrication system with pure oil Collect chuck ISO 30 Additional clamps Uninterruptable power unit (220V, 50Hz, 250VA) Spring collect ER32 Ø3–20mm
